Engineering Design Process

Presenting Solution
Define Problem
Define Problem

We were asked to build a rocket that would safely return an egg (representing a human) to and from a "planet's orbit". All steps of the Engineering Design Process and daily documentation are to be recorded on the company website, as well as orthographic and isometric models of the egg contraption and rocket. We should also calculate the center of pressure of our rocket. A Hab must be built and orthographic drawing as well as resource research are to be documented. The Hab should be airtight and inflatable, and also has to be aesthetically pleasing.

Generating Concepts

Egg Contraption

  • Padding

    • Bubble Wrap​

    • Fleece

    • Rice

    • Marshmallows

    • Cotton Balls

  • Housing(Material)

    • Chipboard​

    • Cardboard

  • Housing(Shape)

    • Cube​

    • Square Based Pyramid

​

Rocket

  • Body Tube

    • 1" Clear Tube​

    • 2" Tube

    • 2.75" Tube

    • Custom Tube

  • Fins(Shape)

    • Trapezoid​

    • Triangle

  • Fins(Material)

    • Portfolio Material​

    • Wood

  • Engine

    • Mandatory Engine​

  • Nose Cone(Shape)

    • Pyramid(Slight Curvature at Bottom)​

  • Nose Cone(Material)

    • 3D Printed​

    • Plastic(Pre-Made)

​

Develop Solutions

Our Final Solution:

  • Carboard Square Based Pyramid Egg Contraption with Fleece Padding

  • Custom Body with Separate Tube Housing the Fins

  • Trapezoid Wooden Fins

  • Premade Plastic Pyramid Nose Cone

​

Orthographic Models

3D Models

Rocket Bottom

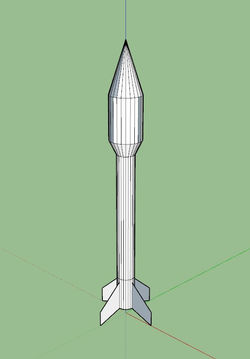

Rocket Isometric
Rocket Top
Rocket Right
Construct and Test Prototype

Center of Pressure

Generating Concepts
Develop Solutions
Prototyping

cP = 33 cm

Reflections
Reflections

Total Weight = 3.8 oz (including engine and egg)
